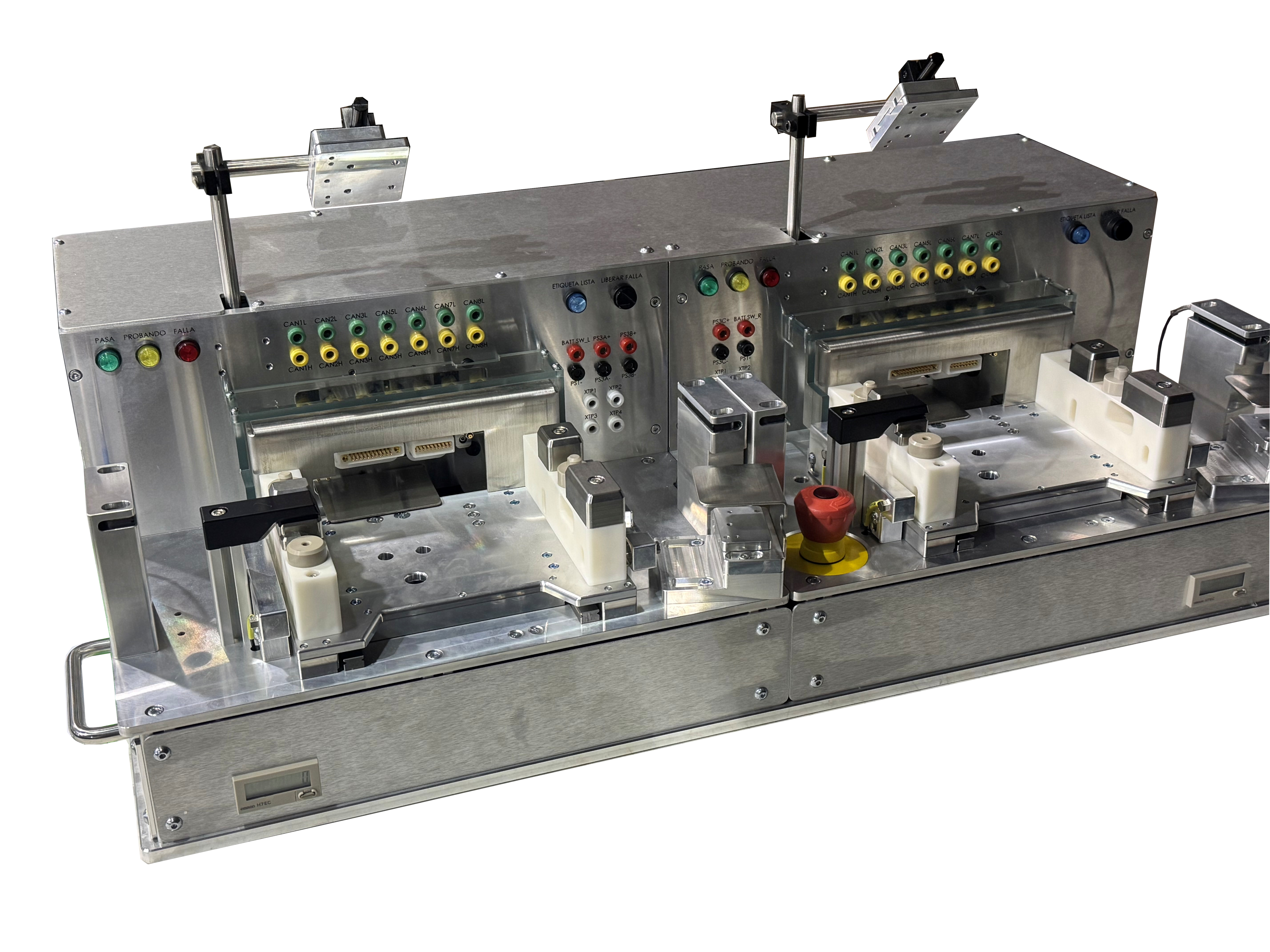

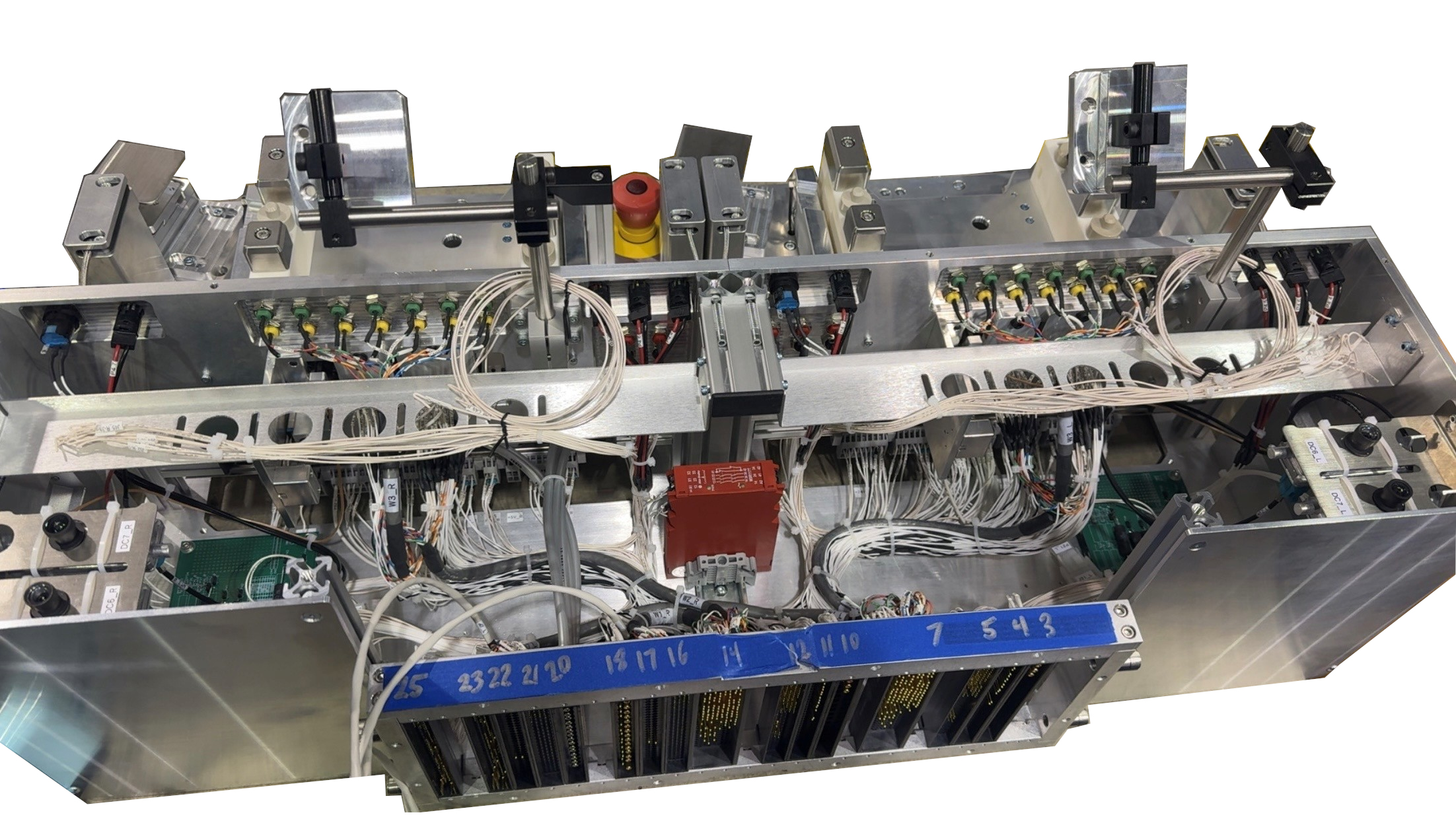

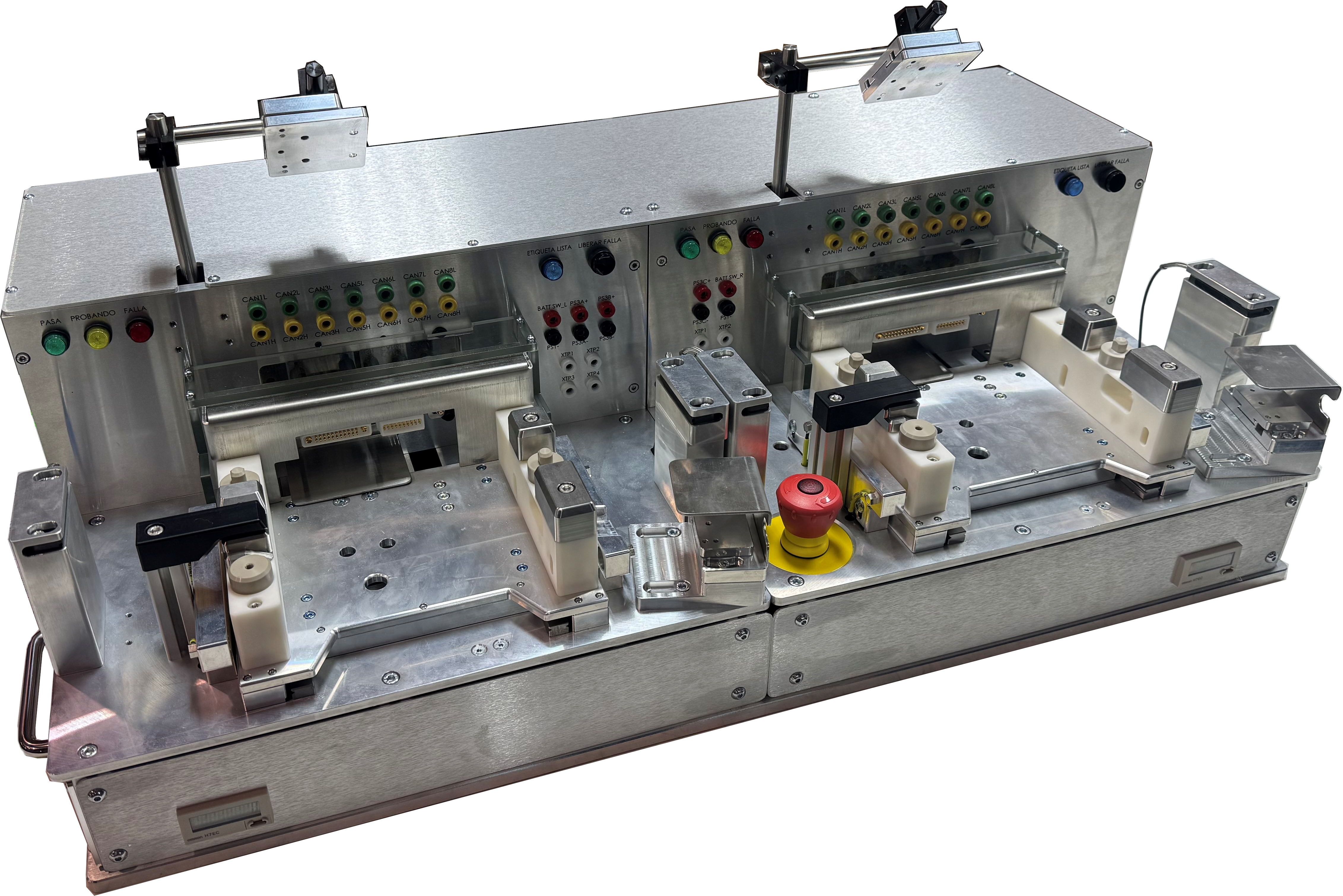

The CADM LO ECU Dual Test fixtures are built to test Engine Control Units (ECUs) to ensure their functionality during their production. The ECUs are placed in a sled and the sled slides forward, mating the ECU with the probe blocks in the fixture. The test fixture performs a test to ensure that the ECU is functioning properly, and the fixture then slides back, and the ECU can be replaced with a new one. The CADM LO ECU Dual Test fixture can simultaneously test two ECUs at once, speeding up the testing process.

This build-to-print project leverages Virginia Panel Company interconnect solutions and Keyence Corporation components to deliver a robust, high-throughput testing solution for the automotive industry. The dual-station design maximizes production efficiency by allowing continuous ECU testing while operators load and unload units at alternating stations.
