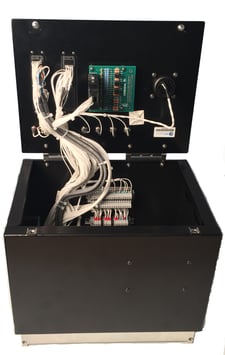

Ball Systems designed and developed an ITA panel that was placed into a tester for a 48V DCDC Converter. Mating adapters plug into this ITA on front of the tester, which gives the customer a more standardized interface. This allows for electronics to be interposed to PXI signals and the DUT or test system.  The system includes the following interface cables:

• PXI ITA1 to Test Fixture LVIO
• PXI ITA2 to PTI Rack
• IX to PTI Rack
• PTI Rack to Test Fixture
• 48V Power Supply to Test Fixture
• 14V Power Supply to Test Fixture

All drawings for the fixture design were created by Ball Systems. All existing drawings were provided to the customer in their source CAD format.
