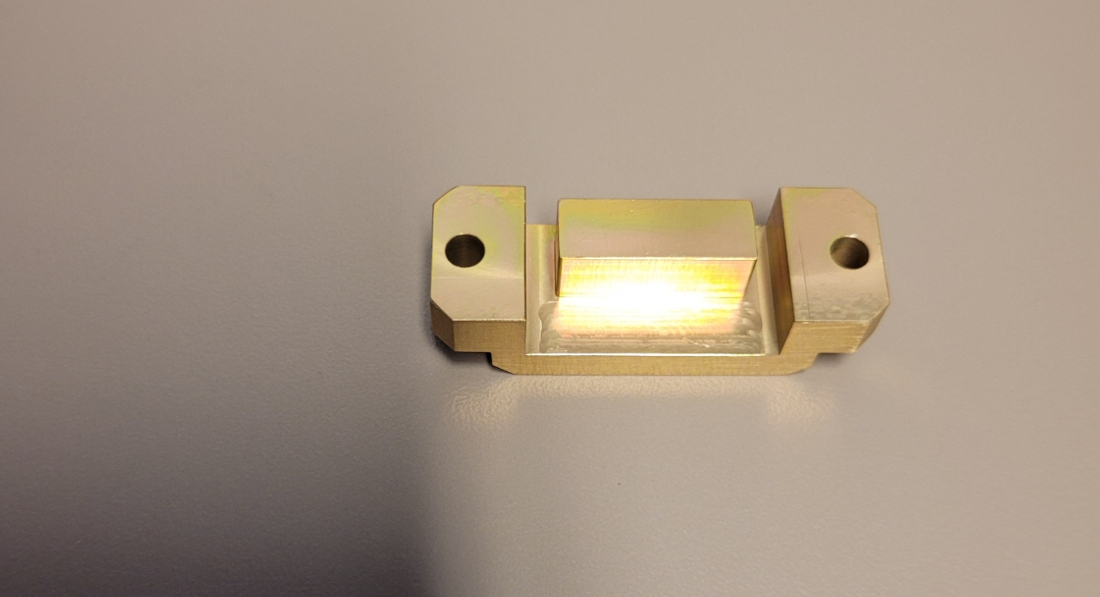

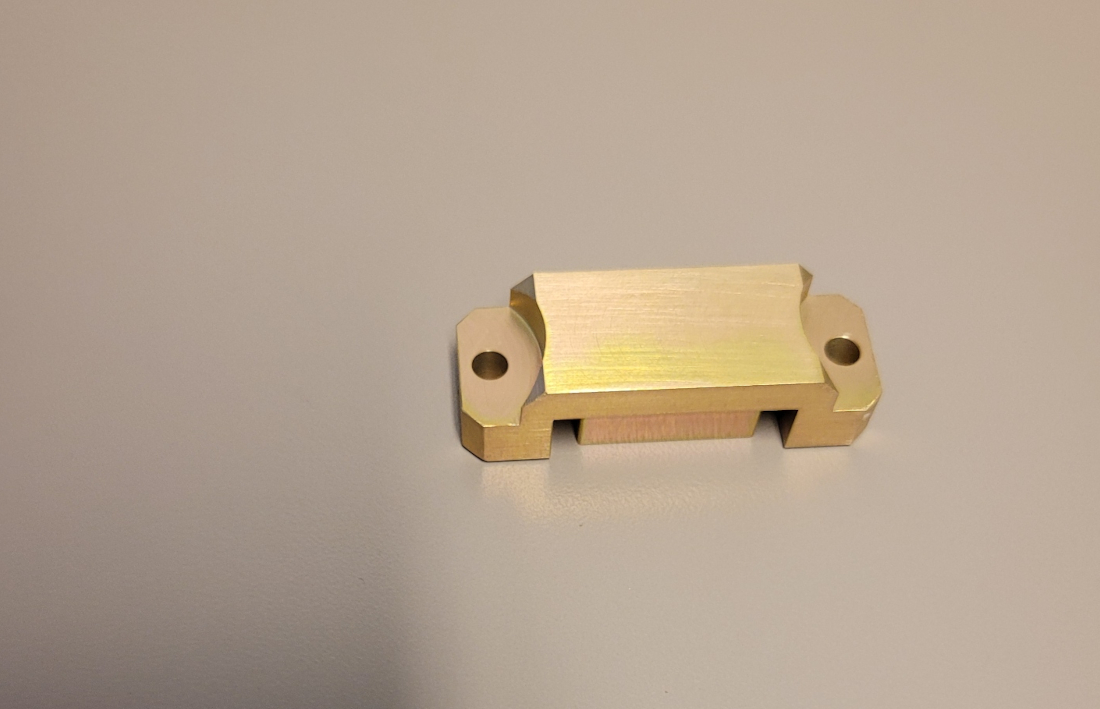

A Tier-1 aerospace and defense customer needed an X-band waveguide short. In plain terms: it's a precision-machined termination piece that closes off a section of RF waveguide, with a choke-style flange interface engineered to maintain a clean, low-loss RF connection without needing a perfect metal-to-metal contact at every point, which is a detail that matters enormously in high-frequency microwave and radar systems.
It's a small part. It's also exactly the kind of part where 'close enough' isn't a real option. Any deviation in the flange geometry or waveguide dimensions can introduce reflections and signal loss that ripple through an entire RF test or calibration system.
Not every Ball Systems program is designed and built from scratch in-house. Some of the most valuable work we do is precision sourcing and finishing, or taking a part built to an exact customer print, routing it through the right specialty processes, and standing behind the result as if we'd built it ourselves.
On this program, the waveguide short itself was precision-machined by a trusted outside supplier to the customer's exact print. From there, Ball Systems coordinated a subcontracted anodize finishing operation to protect the machined aluminum and preserve the part's mechanical and RF performance over its service life. Every step was managed and tracked under Ball Systems' standard build-to-print process, on a 3.5-week lead time for a single-unit build.
|
|
Anodizing isn't just cosmetic. On a machined aluminum RF component, it protects the base metal from corrosion and wear over years of service — without compromising the dimensional accuracy the waveguide interface depends on. Getting that sequence right- machine first, then finish, then verify- is what keeps an RF part precise for the long haul, not just on the day it ships.
It's also why Ball Systems treats hardware sourcing programs with the same discipline as full builds: every vendor is qualified, every subcontracted process is tracked back to the part it touched, and nothing goes out the door without a final check against the print.
This waveguide short is a good reminder that Ball Systems' build-to-print capability isn't limited to cable assemblies and harnesses. The same aerospace and defense customers who rely on us for custom interface cables also come to us for precision RF and microwave hardware — components that have to be sourced, finished, and verified with the same rigor, even when Ball Systems isn't the one running the mill.
