When a Solid State Cockpit Voice Recorder needs to give up its data, the cable between the unit and the ground station has to be exactly right. Wrong pinout, bad termination, miscut length — and the data either won't come off the recorder or won't come off cleanly. For an aerospace customer, neither outcome is acceptable.
Ball Systems built one of these download cables for a major aerospace OEM. Quantity of one. Aerospace tolerances. On the dock in three weeks.
This isn't a part Ball Systems runs by the thousand. It's a piece of ground support equipment used by a maintenance team to pull recorded data off a specific generation of cockpit voice recorder. When the order comes in, it comes in for one unit. When it has to ship, it has to ship correctly.

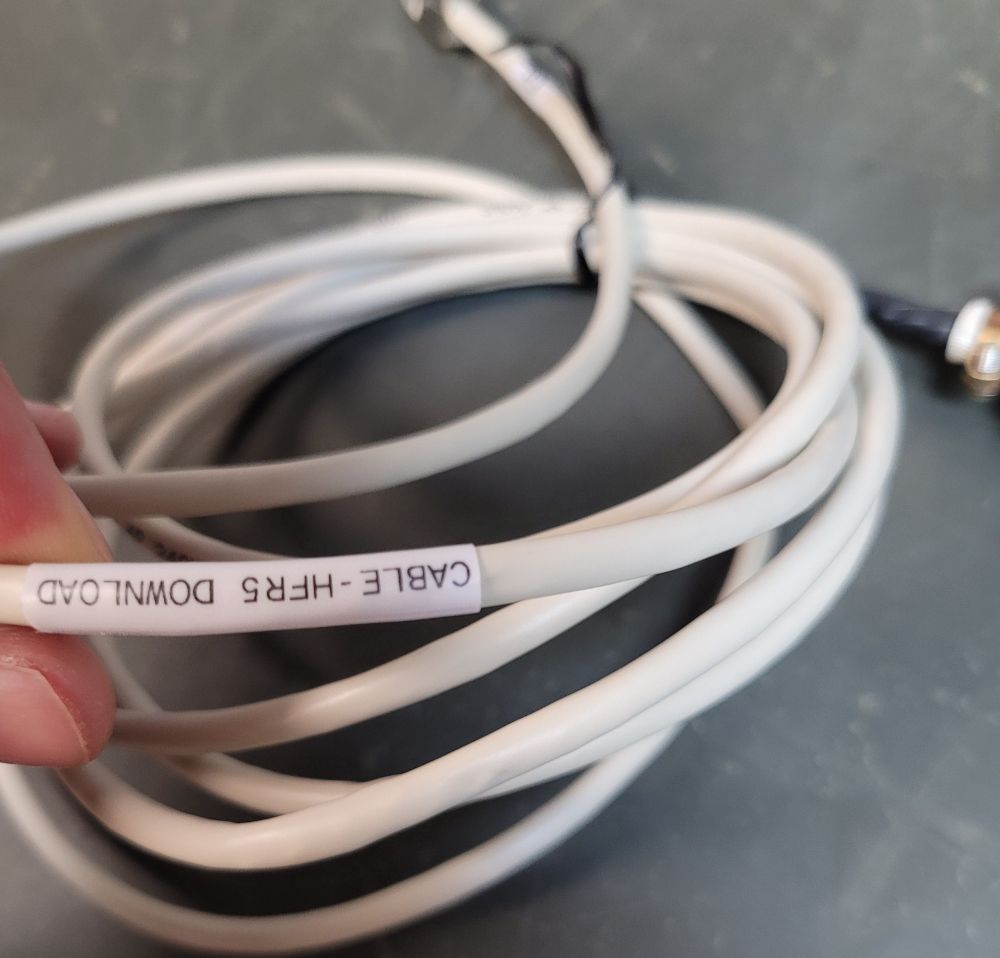

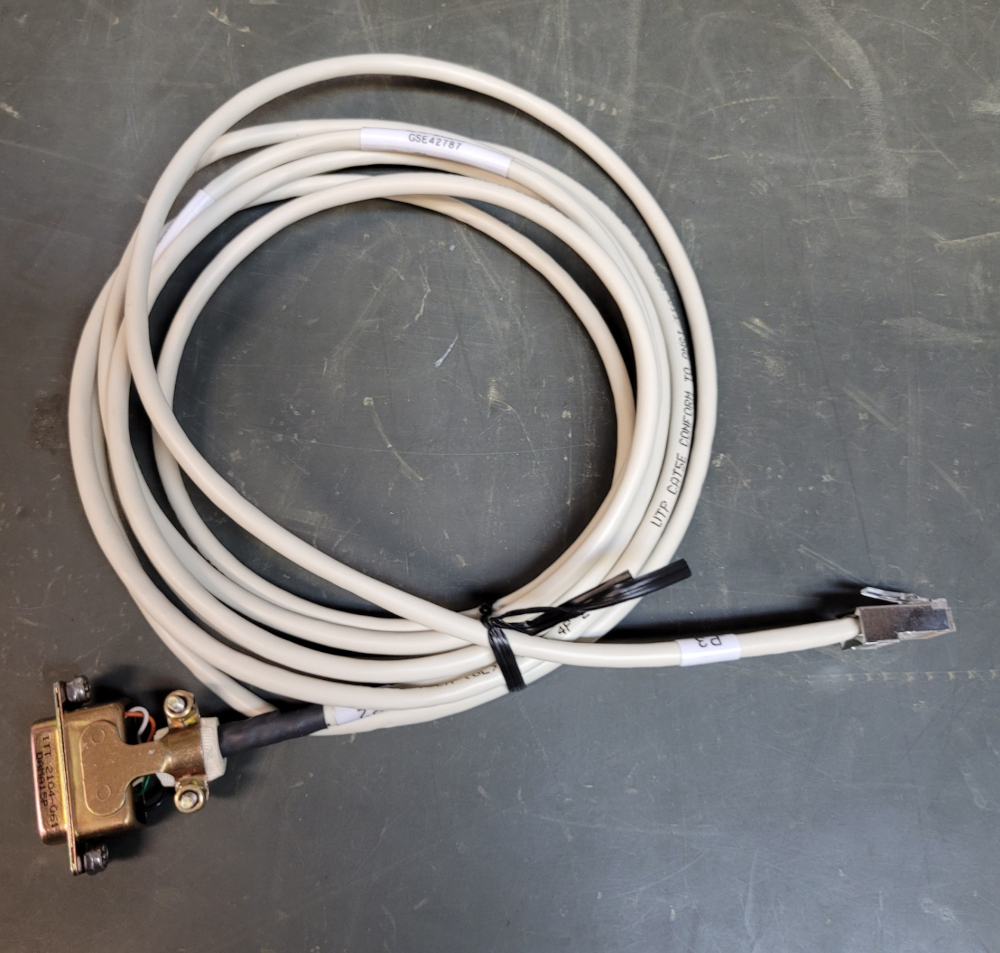

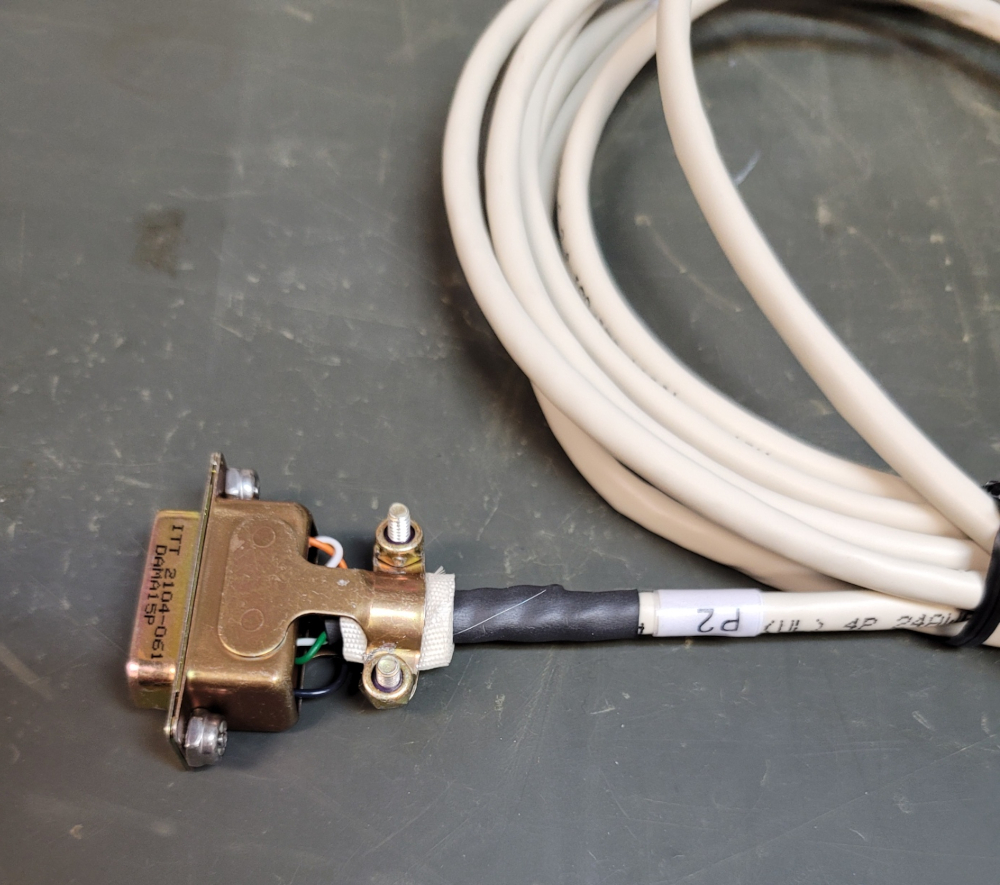

The draw package called for a 10-foot cable assembly (120" ±6") with specific connectors, a defined pinout, and labeling that traces the assembly back to the manufacturer, the part number, the revision, and the serial number. Five separate label locations had to match the print. The cable had to be built to IPC standards, with full continuity verification before it left the building.
|
|
|
Aerospace cable assemblies aren't commodity work. They demand the right tooling, the right hands, and the right discipline.
The assemblies in this category are almost always low-volume, high-mix. Ball Systems has been building cables for aerospace and defense programs for more than 20 years, with an in-house inventory of tooling and connectors that lets builds start immediately.
This particular cable family is part of an ongoing relationship with the customer. The Ball Systems team has built it before. The IPC-trained technicians on the floor know what the print is asking for, know where the typical fail points are, and know what "right" looks like when the cable comes off the bench.
The assembly was kitted, built, and inspected against two parallel quality checks:
Both inspections were signed off by the same Ball Systems Project Engineer who wrote the traveler, ordered the materials, and tracked the job from receipt through shipping. One window of accountability, start to finish, which is the way Ball Systems runs every project.
The cable was shipped serialized, documented, and ready to perform in 21 days to meet the customer's rigorous timelines.
